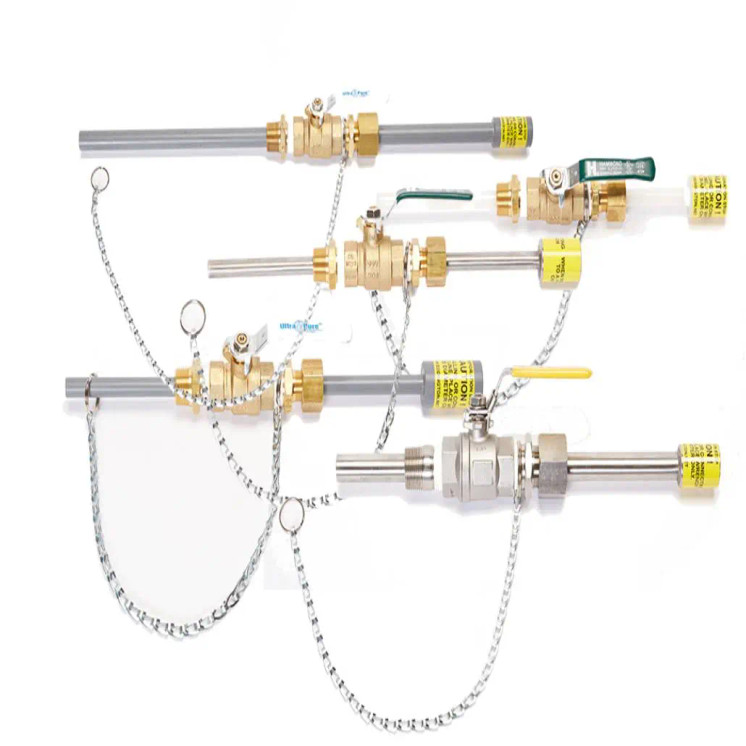

Eddington Corporation Stops with Lead Free Brass Valve and Fittings, Kynar

Corporation Stops with injection quills are commonly used to inject chemicals pumped by metering pumps into tanks or headers. Popular chemicals where these corporation stop valves are boiler chemicals and cooling water chemicals, and other water process systems.

The injector quill extends into the center of the water stream providing more uniform dispersion of injection chemical. Corporation Stop Valve Products can be mounted to a “hot tap” which is installed without having to drain the system. Corporation Stops are ideal for systems that never shut down, since they can be inserted or removed without having to shut down the system. Corporation stops are different then chemical injection quills.

Every corporation stop come with a safety chain to prevent the nozzle assembly from being completely withdrawn before the corporation stop is closed and is a safety feature to protect against back pressure. Standard maximum insertion length is 8 1/2".  Available materials are PVC, PVDF, and 316 SS with either a 1/2" or 3/4" MNPT process connection threading.  The Chemical side connection is 1/2" FNPT. If you require a different length or configuration do not hesitate to reach out.

Features

• Longer quill lengths up to 24” are available upon request.
• Every corporation stop come with a safety chain to prevent the nozzle assembly from being completely withdrawn before the corporation stop is closed and is a safety feature to protect against back pressure.

Specifications

• Insertion Length:
  • 1/2” & 3/4" MNPT: 8 ½”
  • 1” MNPT: 7 5/8”
• Temperature and Pressure Rating
  • Max Temp: 200°F (93°C)
  • Max Press. (psi): 150

Downloads

Corporation Stops Datasheet

Call For Addintional Length:

Adder for Longer Quill Lengths for All 1/2", 3/4", and 1" Corporation stops:

PVC Models: $158.00 – 24” Max Length

316 SS Models: $164.00 – 24” Max Length

Kynar Models: $164.00 – 24” Max Length

For longer Alloy 20 & Hastelloy quill lengths, consult factory for pricing.
