Description

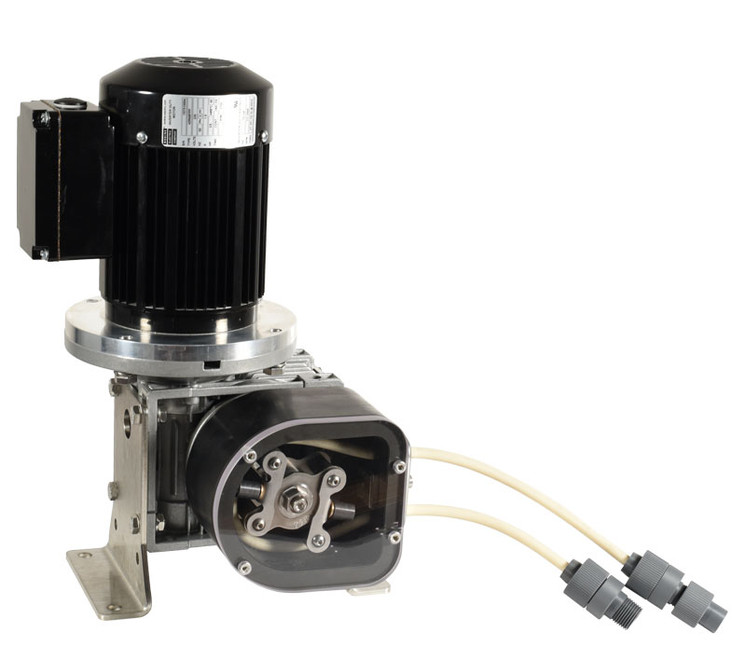

FLOMOTION V21 SERIES INDUSTRIAL HOSE PUMPS

Designed to meet the demanding requirements of chemical injection and dispensing applications.

Exceptional self-priming capabilities make the V21 Series an ideal choice for hard-to-handle chemicals such as sodium hypochlorite, hydrogen peroxide or viscous polymers. An extremely wide range of flow outputs can be obtained by simply changing the tubing size.

One size pumphead accepts five standard tubing sizes. The spring loaded pumphead rollers provide extended tubing life and automatically compensate for minor variations in pump tube wall thickness. The V21 Series pump system allows you to mount the controller on the wall…away from the harsh environment.

An optional tubing rupture detector will automatically shut down the pump and signal an alarm in the event of a tubing leak. Used in conjunction with the unique sealed pump design the FLOMOTION Tubing Rupture Detector helps to protect operators and other equipment from potentially dangerous fumes and chemicals.

Features

  • Flows to 52 GPH, Pressures to 100 psi.
  • Rugged industrial drive uses standard 56C face motors
  • Seal-less pumping technology
  • Self-priming – suction lifts to 30 ft.
  • No check valves – few moving parts
  • Various long life chemical resistant tubing options available
  • Dry run capability
  • Remote wall mount controller with LED digital display & integral keypad in NEMA 4X enclosure
  • User selectable manual or automatic control
  • Automatic control via 0-10VDC, 4-20mA or RS485 inputs

Dimensions

V21 Dimension Dia

Specifications

GEARBOX / MOTOR / PUMPHEAD

  • Motor: 3/8HP, TEFC inverter duty, 56C with oven-cured epoxy powder coat finish.
  • Gearbox: Diecast aluminum, corrosion resistant epoxy coated.
  • Pumphead: Stainess Steel with spring loaded roller assembly.
  • Weight: 34 lbs.

K4-24 CONTROLLER

  • Wall mount with LED display
  • Integral 8 button keypad
  • Forward/Reverse capability
  • NEMA 4X enclosure
  • 115/230VAC input, 1-Phase
  • 230VAC 3-phase output to motor
  • Integral Power Disconnect (opt.)

INTERFACING

  • Remote or manual speed control input (4-20mA, DC voltage or frequency)
  • Start/Stop control input
  • Local/Remote Select input
  • Tubing Rupture input
  • Pump Running output (running/stopped)
  • Speed Feedback output (4-20mA)
  • Status output (auto/manual)
  • Fault output
V21 Series Estimated Pumping Capacity*                                                                                                                    RPM Range: 1.5 - 240
Tubing Size (ID)

 1.6mm

(1/16”)

 3.2mm

(1/8”)

 4.8mm

(3/16”)

 6.4mm

(1/4”)

 8mm

(5/16”)

 9.6mm

(3/8”)
 Max Pressure (psi) 100 100 80 60 30 30
ml/rev*

0.4

 1.7 4.1 6.5 10.8 13.6
 Flow Range GPH:

0.01 - 1.5

(0.6 - 96 ml/m)

0.03 - 6.5

(1.9 - 408 ml/m)

0.09 - 15.6

(5.7 - 984 ml/m)

0.2 - 24.7

(12.6 - 1560 ml/m)

0.2 - 41.1

(12.6 - 2,592 ml/m)

0.3 - 51.7

(18.9 - 3,262 ml/m)
 Continuous Duty Up To:

0.6

(40 ml/m)

 2.7

(170 ml/m)

 6.5

(410 ml/m)

 10.3

(650 ml/m)

 17.1

(1,080 ml/m)

 21.6

(1,360 ml/m)
 Medium Duty Up To:

1.1

(70 ml/m)

 4.7

(298 ml/m)

 11.4

(718 ml/m)

 18.0

(1,138 ml/m)

 30.0

(1,890 ml/m)

 37.7

(2,380 ml/m)
 Light Duty Up To:

1.5

(96 ml/m)

6.5

(408 ml/m)

15.6

(984 ml/m)

24.7

(1,560 ml/m)

41.1

(2,592 ml/m)

51.7

(3,262 ml/m)
