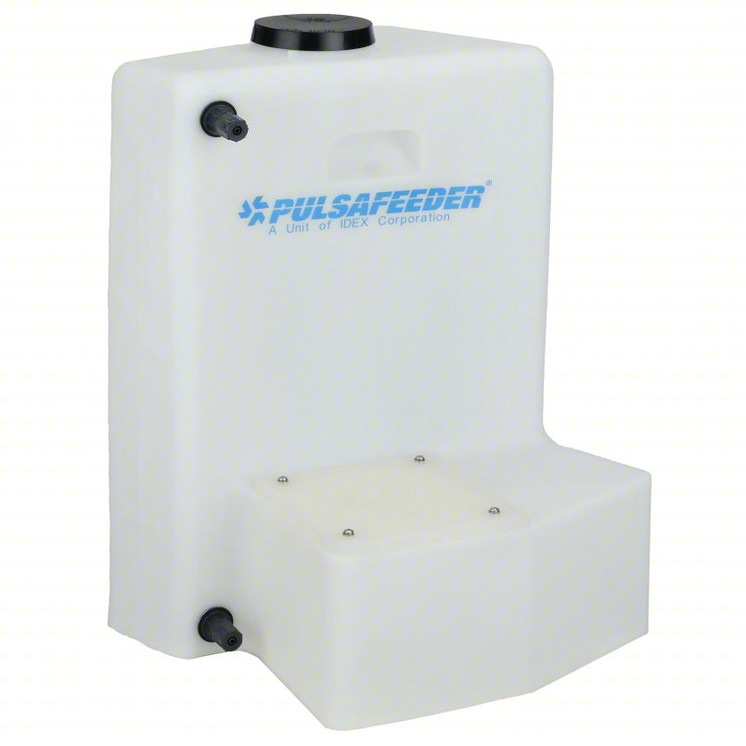

Pulsafeeder J40489 Chem-Tech Pumps, Integrated Tank Systems, 15 Gal with 3/8" Tubing Connections (Tank Only)

Integrated Tank Systems

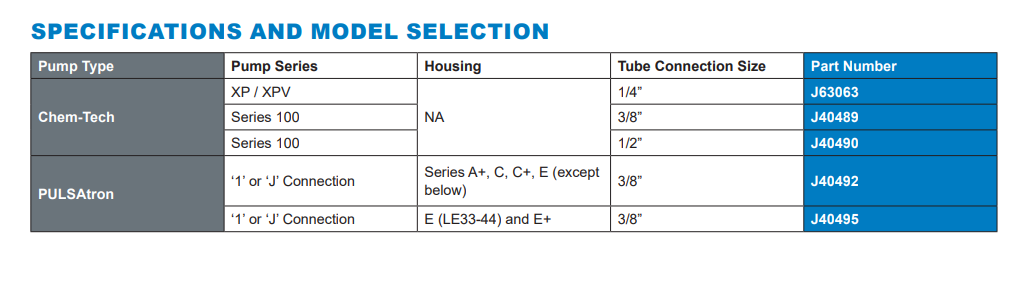

P/N J40489 Includes: 15 Gallon Tank With 3/8"" Tubing Connections, Tank Only, Pump Ordered Seperatly. Works with Chem-Tech XP/XPV and Series 100, See table below.

Pulsafeeder’s ITS System is a completely integrated tank system constructed of UV resistant polyethylene (PE) with a 15
gallon capacity. This tank system is translucent with 5 gallon increments and the tank’s low level indicator allows visual
monitoring of chemicals without opening the tank. The tight fitting child proof lid keeps the chemical free of contaminants
and protects the surrounding area from chemical fumes.

The ITS System also allows for easy access to the liquid end and control panel of the mounted pump.

A system consists of a chemical tank with lid and bulkhead fittings: a liquid level indicator float assembly and feeder
mounting hardware.

Features

• Liquid Level Wand: The tank’s low level indicator allows visual monitoring of chemical supply without opening the tank.
• Child Proof Lid: The tight fitting lid keeps the chemical free of contaminates.
• Flooded Suction: The flooded suction allows for continuous pumping without loss of prime.
• Universal Pump Mount: The “ITS” is predrilled for all pumps listed.
• Built-in Grip: For easy lifting and moving of ITS System.
• Optional Shut-Off Valve: Available in PVC, allows maintenance on metering pump without emptying chemical.
