Description

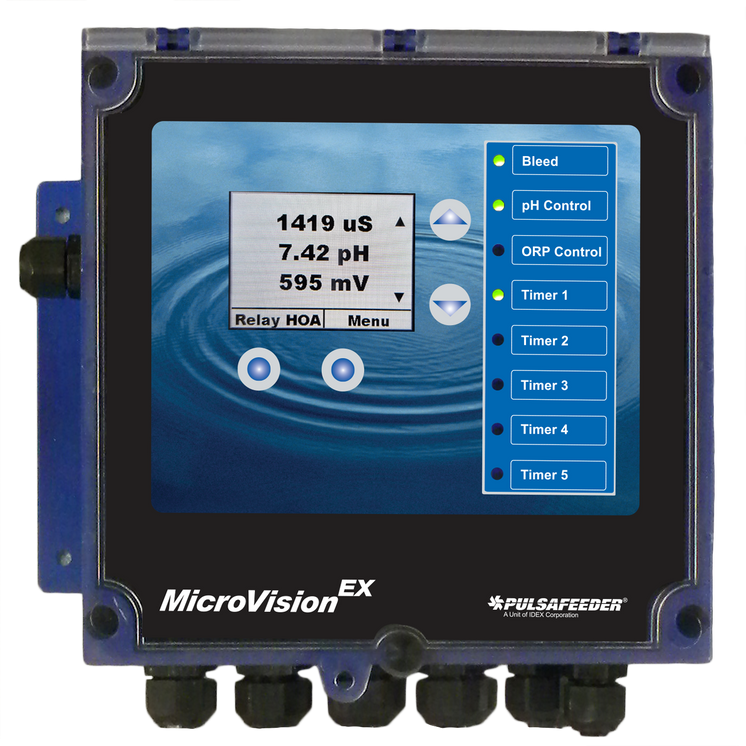

MicroVision EX is a microprocessor-based Conductivity, pH, and ORP controller, with the features and functions you need for accurate monitoring and control of cooling tower water that won’t break your budget! MicroVision EX has optional PULSAlink cloud based communications so you can CONTROL YOUR CONTROLLER FROM ANYWHERE!

Optional PULSAlink cloud based communications, over an Encrypted cloud based site.
  • Live Reading
  • Data Logging
  • Change Settings
  • Email Notifications
  • Enhanced Graphing Capabiliites – Probes, Relays, Water Meters
  • eServiceReport compatible.
  Installation Wizard
  • Configure parameters and install your controller remotely within minutes.
  • Error proof guidelines.
  • Notifications throughout the proceess, with default settings that are customizable.
  • Your downloaded configuration can be used on other installs.
  • Install wizard available for all MicroVision EX units however having PULSAlink eliminates steps and makes installation even faster.

Features

  • Toroidal conductivity sensor.
  • One-point calibration.
  • Large easy to read color display.
  • Lockable front cover.
  • Nameable, customizable: Relays, Inputs, Watermeters.
  • Multiple level security codes.
  • Up to 10 digital inputs.
  • Dry contact alarm output.
  • Battery backup.
  • USB data logging is standard:
    • Up to 2 years of data logging.
    • Upload/Download program settings.
    • Upgrades to the Operating System.

Specifications

Power Input: 100 VAC – 240 VAC / 50/60Hz / 8A

Average Current Draw: 8 Amps Max

Controller Specifications
  • Enclosure: IP65
  • Temperature Range: 122°F / 50°C
  • Power Supply: 100 VAC – 240 VAC / 50/60Hz / 8A
  • Control Output: 8 Amps max (3 Amps / Relay)
  • Display: Multicolor graphical LCD
  • Set Point Range: 0 - 9,999 μS/cm; 0-14 pH; -2000 - + 2000mV
  • Set Point Types: Rising or Falling
  • Languages: English, Spanish, Portuguese
Sensor Specifications
  • Maximum Temperature: 122°F / 50°C
  • Flow Switch Activate Flow Rate: Approx. 1 GPM / 3.78 LPM
  • Conductivity Temp. Compensation Range: 32°F - 122°F / 0°C - 50°C
  • Maximum Pressure: 125 PSI (8.6 BAR)
  • Sensor Type: Toroidal Conductivity
  • Standard industrial pH and ORP sensor
  • PTSA (Pyxis or Little Dipper)
