Pulsafeeder NextStep NS5 Metering Pump 5.3 GPH, 101 PSI, PVDF, FKM, CER, 90-240V 50/60 Hz, With Modbus and 4-20 mA In/Out
No reviews yet
Write a Review
Write a Reviews
Pulsafeeder NextStep NS5 Metering Pump 5.3 GPH, 101 PSI, PVDF, FKM, CER, 90-240V 50/60 Hz, With Modbus and 4-20 mA In/Out
SKU:
NS5AMAKVVC1XXX
Weight:
11.00 LBS
Shipping:
Calculated at Checkout
$3,122.00
Checkout securely with:
Stepper-Motor Precision 3,333:1 Turndown ±1% Repeatability 5-Year Diaphragm Warranty IP65 NSF/ANSI/CAN 61
NextStep™ Digital Dosing Pump
High-resolution metering with microprocessor-driven stepper motor control for smooth, accurate chemical feed—even with off-gassing or viscous chemicals.
Why NextStep
Ultra-smooth flow
Stepper control of suction & discharge strokes reduces pulsation for consistent discharge across the full range.
Stepper control of suction & discharge strokes reduces pulsation for consistent discharge across the full range.
3,333:1 turndown
Accurate control from 100% down to 0.1% capacity with selectable Slow Mode for viscous applications.
Accurate control from 100% down to 0.1% capacity with selectable Slow Mode for viscous applications.

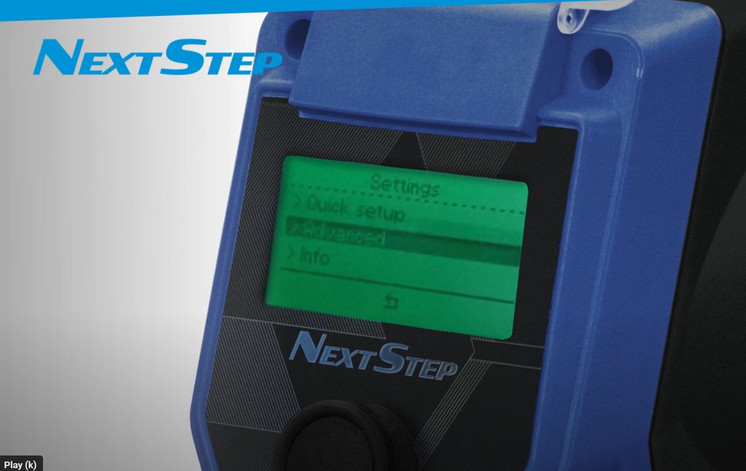

Intuitive LCD
Multi-color backlight signals status: Standby (white), Working (green), Warning (yellow), Alarm (red).
Multi-color backlight signals status: Standby (white), Working (green), Warning (yellow), Alarm (red).
Multiple control modes
0/4–20 mA, 0–10 V, pulse/PPM/%, batch, cycle timer, daily/weekly timer, or constant output.
0/4–20 mA, 0–10 V, pulse/PPM/%, batch, cycle timer, daily/weekly timer, or constant output.
Gallery
Key Benefits
Accuracy & Repeatability
±1% repeatability with nearly constant discharge for stable process control.
±1% repeatability with nearly constant discharge for stable process control.
Handles Tough Chemistries
Reliable metering of off-gassing and viscous fluids; Slow Mode supports up to 1,000 cP.
Reliable metering of off-gassing and viscous fluids; Slow Mode supports up to 1,000 cP.
Built for Duty
Continuous-duty rated, IP65 enclosure, quiet 52.8 dB operation.
Continuous-duty rated, IP65 enclosure, quiet 52.8 dB operation.
Connectivity Ready
Optional RS-485/Modbus RTU; 4–20 mA output; alarm relay; level input.
Optional RS-485/Modbus RTU; 4–20 mA output; alarm relay; level input.
Technical Specifications
| Capacity Range | 0.5 – 21.1 GPH (2 – 80 LPH) |
|---|---|
| Max Pressure | Up to 362 PSI (25 bar), model-dependent |
| Control Range | 3,333:1 (100% to 0.1%) |
| Viscosity Capability | 100 cP @ 100% Slow Mode; 1,000 cP @ 30% Slow Mode |
| Liquid-End Materials | PVDF, Polypropylene, or 316 SS head; PTFE diaphragm; FKM B or EPDM seals; PTFE/Ceramic balls |
| Enclosure | IP65, reinforced PP housing |
| Power | 90–240 VAC, 50/60 Hz; ~30 W |
| Outputs / Inputs | Alarm relay; 4–20 mA output; low-level, pulse, standby, remote start/stop; 0/4–20 mA or 0–10 V input |
| Repeatability | ±1% |
| Certifications | NSF/ANSI/CAN 61 |
| Weight | ~9 lb (PVDF head) |
Model-specific flow/pressure ratings available on request. Specs subject to change by manufacturer.
What’s Included
- PVDF injection valve
- Foot valve/strainer with integrated low-level switch
- Suction, discharge & bleed-return tubing
- Pre-wired input & output cables
Ideal Applications
- Municipal & industrial water/wastewater
- Cooling towers, boilers, and process water
- Disinfection, pH control, nutrient & additive dosing
- Food & beverage, general industry
