SEKO Pump

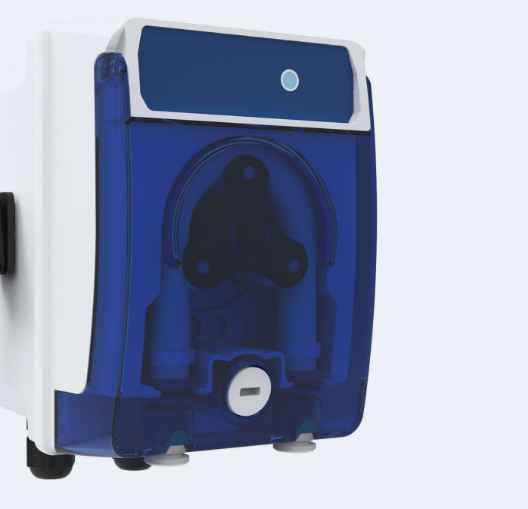

WareOne is the new peristaltic pump that renews the look of SEKO single peristaltic pumps. It is designed to
be installed mainly on under counter dishwashers or glass washers.
WOPR0301M2U00
Flow Rate: 0.7 to 4.1 oz/min
Tube: SekoBril (Silicone) Tube RIC0151542
FEATURES
- NEMA 4X Protection degree and class II electrical insulation
- Analogic Speed Control (15-100%) via potentiometer on the front cover
- ON/OFF/Priming switch
- Features new PC front cover with easy opening and stop in open position that allows tool free tube replacement
- New PP polished enclosure
- 3 Rollers and ball bearing on motor shaft ensure 20% higher lifetime on tube and motor
- Edge free squeeze rollers makes tube replacement safer and easier
- New modular bracket with same footprint as the pump and release lever make pumps easier to install providing perfect modular alignment
- Connections with nuts for tube with O.D. 1/4” for easy, and secure connection of transport hoses.
- Provided with complete installation kit including ¼” O.D. transport tube in PVC or in PE, tank inlet, foot filter with ceramic weight
TECHNICAL CHARACTERISTICS
- CERTIFICATIONS: CE, EAC
- ELECTRICAL CLASS: Class II (ground connection not needed)
- FLOW RATES: 2,5 ÷ 150 ml/min (0,084 ÷ 5 oz/min)
- BACK PRESSURE: 0,1÷3 bar (1,5 ÷ 45 psi)
- POWER SUPPLY: 24÷240Vac - 5 W
- MATERIALS
- ENCLOSURE: PP with fiber glass
- PUMP HEAD: PP with talcum:
- TUBES: Sekoflex Sekobrill
- DOSING: Speed adjustable by trimmer in the range 15÷100% (PR model) Conductivity driven dosage (PA model) with setpoint adjustment by trimmer
- MOTORS: Brushed DC Motors
- CONDUCTIVITY MEASURE RANGE (PA MODEL) 200 μS – 10 mS with conductive probe
- FUNCTIONS: ON/OFF/Priming Switch, Speed or conductivity set point regulation by trimmer
- OPERATING TEMPERATURE: 10-50°C
- STORAGE TEMPERATURE: -20÷60°C
