191694 Walchem Boiler sensor with ATC, 250 psi, 3/4"NPT, cell constant 1

Walchem

$390.00
(No reviews yet) Write a Review
SKU:
191694
Weight:
1.00 LBS
Shipping:
Calculated at Checkout
Adding to cart… The item has been added

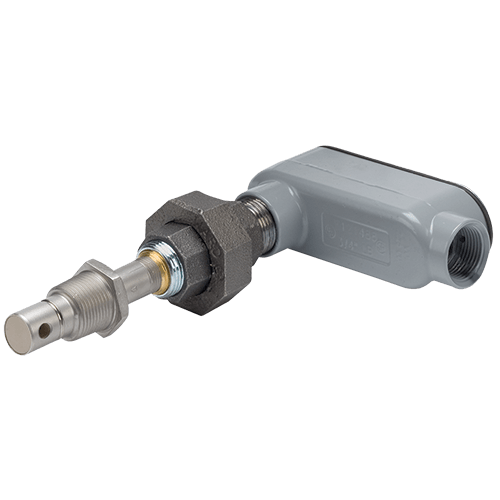

Boiler Contacting Conductivity Sensors

These cell constant 1.0 sensors are designed for boilers with water up to 30,000 μS/ cm (range varies with solution temperature, see next page) and pressures up to 250 PSI, 16.7 bar). These inline sensors are constructed from stainless steel and PEEK.

For the W100, W400, W900, W600 and Intuition series controllers, a cell constant 10.0 sensor is available designed for boilers with water up to 300,000 μS/cm (range varies with solution temperature, see below).

WebMaster controllers require active sensors. These sensors contain electronics to convert the sensor signal to a voltage that these controllers can read. W400, W600, W900 and W100 series controllers use passive sensors.

Performance specifications vary with the type of controller, refer to the controller brochure. Typical boiler temperatures are 0 to 205°C, 32 to 401°F.
