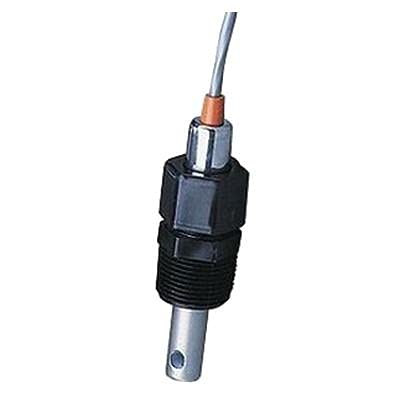

CS10LS Myron L CS10 in 6 in./152,4 mm length

Wetted materials of construction are 316 stainless steel and Teflon®*, with double O-ring seals at all points. The first EPR O-ring bears the brunt of process interface, allowing the second O-ring to maintain reliable sealing, free from chemical attack. An integral temperature element allows automatic compensation for maximum accuracy. Leads are 10 ft./3 meters standard.

Process connections are made via a bored through swage 3/4” NPT fitting as standard. This fitting may be installed into a line or tank, or may be reversed and connected to a standpipe for use in a submersion configuration. The CS10 was designed primarily for use in pure water applications.

Features

• Small size enables convenient installation and service.
• Dual O-ring seals used on all versions for high on-stream reliability.
• Plastic gland fitting allows removal and replacement without tools.
