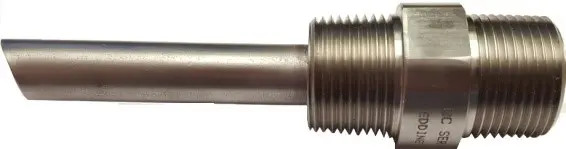

- The Eddington QB & QC Series Injection Quills offer MNPT process connections X MNPT pump side connections. Stainless Steel and Alloy quills can be used for high temperature, high pressure applications.
- These Injection Quills are available in Type 316 Stainless Steel, PVC, Kynar, Alloy 20 and Hastelloy C276.
- The QC Injection Quill has a built-in ball check valve to prevent backflow through the nozzle and into the chemical feed line. The QB Injection Quill has no check valve.
- Crack pressure on the QC Injection Quill is less than 7 psi; if the pump cannot deliver enough pressure, then a QB Injection Quill may be appropriate.
- There are two flat surfaces on the external portion of the nozzle so a wrench can be used during installation.
Downloads
QB_QC Series Injection Quills Datasheet
Call For Addintional Length:
PVC Models: $158.00 – 24” Max Length
316 SS Models: $164.00 – 24” Max Length
Kynar Models: $164.00 – 24” Max Length
Slotted Quill End: Add $70.00
For longer Alloy 20 & Hastelloy quill lengths, consult factory for pricing
