Blue-White

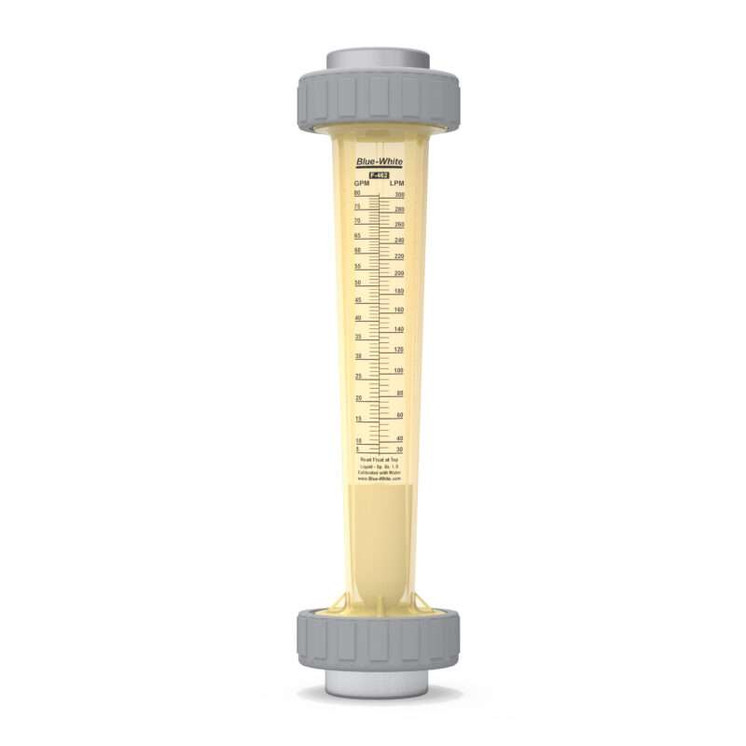

BW F-462 Polysulfone Flow Meter
SKU:
F-462
Weight:
5.00 LBS
Shipping:
Calculated at Checkout
$959.00 - $1,006.95
F-462
Polysulfone Flow Meter
F-462 Series Polysulfone Flow Meters feature precisely engineered float guide ribs, eliminating metals in the fluid path, and are ideal for corrosive environments such as deionized water or other applications where an all plastic meter is desirable. The float is constructed of PTFE and optional polypropylene or PVDF adapters are available.
Technical Overview:
GPM: 2 - 80
LPM: 8 - 300
PSI: 150
Bar: 10.3
Fahrenheit (°F): 200
Celsius (°C): 93
Body Material: Polysulfone
Pipe Sizes: 2″ female NPT fittings
Features
- Designed for in-line installation (Vertical)
- 2” Pipe Size
- F/NPT connection
- Rib Guided Float
- No Metal in the fluid path
- Optional polycarbonate splash shield.
- Not recommended for direct sunlight
- OEM options available
Specifications
Max. Working Pressure:
- 150 psig (10.3 bar) @ 70° F (21° C)
Max. Fluid Temperature:
- 200° F (93° C) @ 0 PSI
Full Scale Accuracy:
- +/- 2½ %
Meter Body Material:
- Polysulfone
Adapter Material:
- 2″ F/NPT: Polysulfone
Union Nuts:
- Glass fiber reinforced Nylon
O-ring Material:
- FKM
Max Pressure Drop:
- 2 PSI
Approx. Shipping Weight:
- 5 lb. (2.27 kg)
Meter Ranges
Models with F/NPT connections
Models for Liquid
| Model Number | GPM | LPM | Adapter F/NPT | Float Material | Adapter Material |
|---|---|---|---|---|---|
| F-462200LX-32H | 2 to 20 | 8 to 80 | 2” | PTFE | Polysulfone |
| F-462500LX-32H | 5 to 50 | 20 to 200 | 2” | PTFE | Polysulfone |
| F-462800LX-32H | 8 to 80 | 30 to 300 | 2” | PTFE | Polysulfone |
