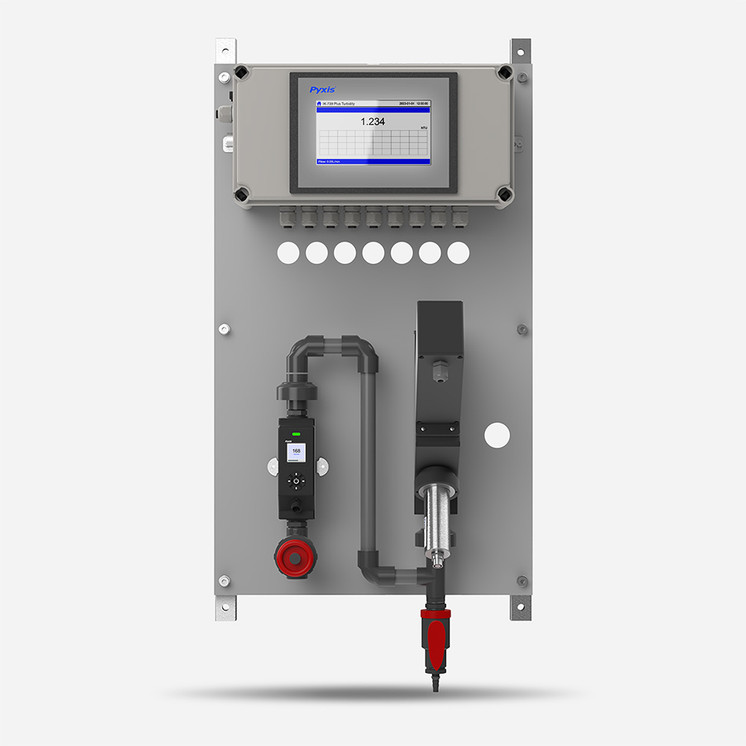

Pyxis IK-736 PLUS Auto-Brushing Ultra-Low Turbidity Analyzers

Previous Next

Pyxis IK-736 PLUS Auto-Brushing Ultra-Low Turbidity Analyzers

Name: Pyxis IK-736 PLUS Auto-Brushing Ultra-Low Turbidity Analyzers
Brand: Pyxis
SKU: 12003
Price: 6550 USD
Availability: InStock

No reviews yet

Write a Review

SKU: 12003

Weight: 33.06 LBS

Shipping: Calculated at Checkout

$6,550.00

Current Stock:

Quantity:

Description
Product Reviews

Description

The LT-73X-PLUS series offers highly accurate, auto-brushing, real-time measurement, display and data-logging of Ultra-Low Turbidity, utilizing proprietary Pyxis Lab smart sensor technology, coupled with a touch screen display and data logging terminal. The IK-739-PLUS measures a range of 0.000–40.00 NTU while the IK-736-PLUS measures a range of 0.000–1000 NTU. The IK-73X-PLUS series is offered in a convenient and easy to integrate panel mounted format for rapid installation and simple maintenance.

Features

Warm White LED in 90º Surface Scatter Format in Accordance with EPA 180.1
Mounted in FT-100 Plus Auto-Brushing Flow Reservoir for Continuous Sensor Cleaning
Optical Lens enables the Highest Resolution possible of 0.002NTU with Unmatched Stability
Simple Calibration via the L-CAL Portable Calibration Kit
Panel Mounted for Simple & Rapid Installation

Specifications

Item	IK-736-PLUS
P/N	12003
4G Gateway	Not Included
Turbidity Source / Wavelength	LED / Warm White
Turbidity Dual Range	0.000 – 1,000 NTU
Turbidity Flow Cell With Brushing	Included
Measurement Accuracy	0.001NTU or ± 1% Full Scale
Minimum Resolution	0.002 NTU
Response Time	4s after immersion - Turbidity
Compliance	EPA-180.1
Measurement Interval	Continuous Measurement
Display	7-inch LCD Color Industrial Capacitive Touch Screen
Storage Capacity	Built-In 4GB of Ram for Storing up to 1-Million Data/Event Records
Power Requirement	96-260VAC / 50-60 Hz; 3A Fuse; 75 W
Output	2 x 4-20 mA / RS-485 Modbus - RTU / Modbus TCP
Input	2 x 4-20 mA / RS-485 Modbus - RTU
USB	1 x USB host, for data downloading and screen upgrade
Internet	RJ-45 socket, Modbus-TCP
Panel Operational Temperature	40 – 113°F (4-45°C)
Storage Temperature	Instrument: -4 – 131°F (-20 – 55°C) / Sensors 32 – 122°F (0 – 50°C)
Sample Water Temperature	40 – 104oF (4-40°C)
Sample Water Pressure	7.25 – 30 psi (0.05 – 0.2Mpa)
Sample Water Flow Rate	500 – 2,000mL / Minute
FS-100 Method of Measure	Ultrasonic Flow Detection
FS-100 Rated Flow Range	0 – 3,000 mL/min
FS-100 Resolution/Max Error	1mL/min or ±2% of the value
FS-100 Display	1.44” Color 128 x128 Resolution
Sample Line Size	½-inch NPT
Rating	IP-65 Panel-Display / IP-67 Sensors
Regulation	CE / RoHS
Relative Humidity	20% - 90% (No Condensation)
Altitude	<6,561 feet (<2,000 Meter)
Dimensions (HxWxD)	Panel (IK-73X9-PLUS) 750H x 450W x 243D mm
Approximate Product Weight	IK-73X-PLUS Series ~ 15 kg
