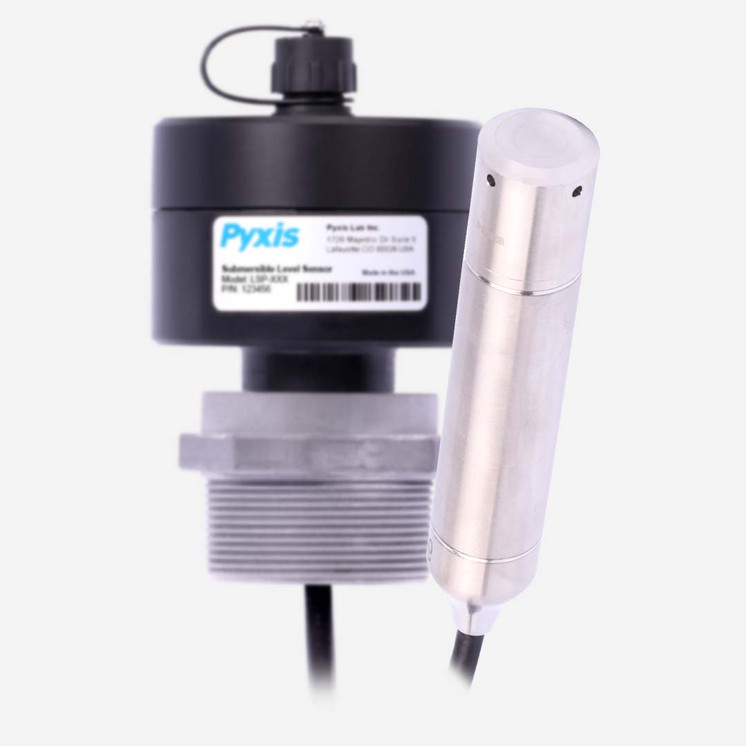

LSP-101 | Bluetooth Pressure-Based Level Sensor | 316L Stainless Steel Transducer

Description:

The LSP-101 is a pressure based submersible level sensor offered in a 316L stainless steel format. All of our LSP-Series sensors provide continuous level measurement up to 393 inch (32.8ft or 10m) with a 4–20mA analog and Bluetooth® digital outputs. Configure your LSP-101 via the uPyxis® app in less than 1 minute and do not require liquid in the tank for configuration.

The LSP-101 device uses 24VDC power supply only, providing a 4–20mA output signal to any receiving device. This platform offers a lower cost alternative with superior accuracy and the convenience of rapid Bluetooth® configuration.

All LSP-Series submersible liquid level sensors are well-suited for water, waste water, oil and chemical tank applications. The LSP-101 may be installed in top of tank formats or with the LSP Wall Mounting Bracket for easier access and visibility.

Typical Applications:

The LSP Series level sensors are ideal for use in water level, chemical level, process liquid level or other applications requiring accurate and continuous liquid level measurement or control. Select your device based on its compatibility with liquid being measured. All LSP Series sensors can also be powered by a 24VDC power supply and output the result with the 4–20mA output.

Specifications
