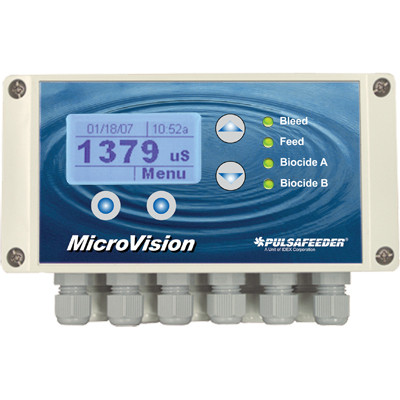

The MicroVision is a microprocessor-based conductivity controller with selectable timer and dual biocide control. Designed specifically for cooling tower applications, MicroVision comes standard with the features and functions you need for accurate monitoring and control of cooling tower water. The MicroVision is a full function controller in a compact package that won't break your budget! Features include:
Toroidal conductivity sensor (won't fail due to scale over, never needs recalibration)
Large graphical display with large, easy to read font
Simple four button user interface
Compact Size
Selectable time (limit %, % post bleed and water meter
Dry Contact/Hall Effect water meter input
Dual biocide with pre-bleed, lockout, inhibitor interface and four programmable start times per biocide
Flow switch input
(3) drum level inputs
4-20mA isolated analog output
Dry contact alarm output
Agency approved
NEMA 4X enclosure
Battery backup
Operating Benefits
Easy to use. Simple user interface and large graphical display means easy and intuitive set-up and programming.
No need to recalibrate.MicroVision's toroidal sensor technology saves you valuable service time and money by eliminating routine calibrations.
Reduced potential for fouling. By design, the MicroVision toroidal sensor has no exposed electrodes, whichmeans that there is nothing to wear out or foul.
Easy Installation. With pre-wiring and panel mount options, installation is quick and easy.
2 year warranty
Large range: 0 - 9,999µS
Compact size saves space and reduces freight costs
Shown with option "C" back panel with flow switch, 2 pump mounts, sensor tee, 2 injection fittings and associated pipe, valves and fittings. (pumps not included)
