Neptune
Neptune Series 560
SKU:
560-x-Nx
Weight:
85.00 LBS
Shipping:
Calculated at Checkout
$4,521.00 - $9,279.00
560 Series
560 Series Hydraulic Metering Pumps are designed for higher capacities and available in Neptune’s Simplex design or Duplex design. Neptune's Simplex design configuration includes a single micrometer dial with one liquid head. Neptune’s Duplex design are configured to include two micrometer dials with two liquid heads.
LIQUID HEAD MATERIALS OF CONSTRUCTION
- 316SS
- C-20
- PVC
- PVDF
DIAPHRAGMS
- PTFE
CAPACITY
- 40 gph (151.42 L/h) to 94 gph (355 L/h)
MAX PRESSURE
- 316SS - 350 psi (24 bar)
- C-20 - 350 psi (24 bar)
- PVC - 150 psi (11 bar)
- PVDF - 150 psi (11 bar)
MAX TEMPERATURE
- 316SS - 200°F (93°C)
- C-20 - 200°F (93°C)
- PVC - 125°F (52°C)
- PVDF - 125°F (52°C)
STANDARD MOTOR
- 1/2HP-1ph-115VAC-60c-TEFC up to 1HP
Features and Benefits
- Ten turn micrometer dial calibrated in 1% increments, with the ability to adjust capacity from 10% to 100%
- Variable Oil By-Pass™ Stroke Adjustment provides a better valve performance when compared to variable linkage designs
- Bright color contrasted dial protected from corrosion by clear PVC covering
- Stroke mechanism moves only when adjustment is made, eliminating wear
- Piston is powered through complete stroke length at all capacity adjustments, eliminating stress, wear and shock of lost motion designs
- Totally enclosed fan-cooled motor with built-in automatic thermal overload

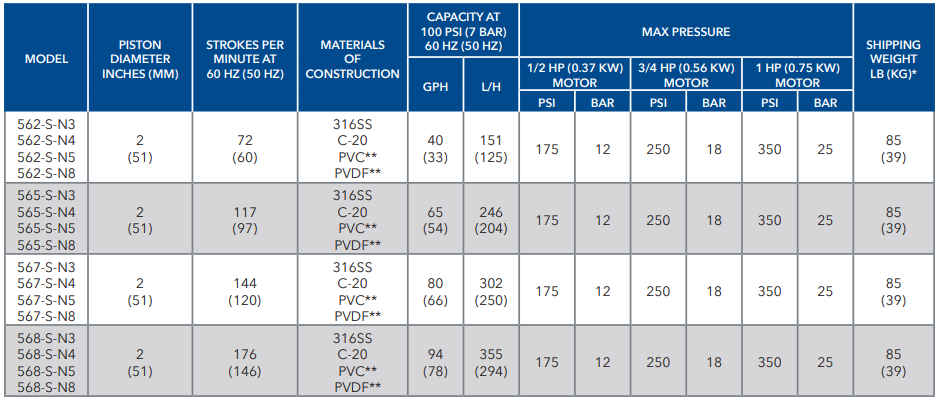

Specifications
