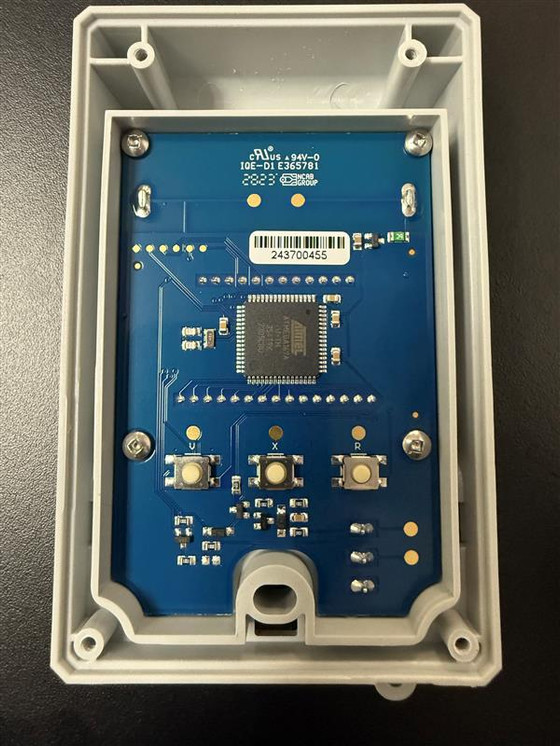

Carlon Digital Pulse Counter A31UR

Carlon’s Universal Remote, A31UR, provides a remote readout of the number of pulse contacts coming from an electric contacting water meter. The A31UR comes in a NEMA-4 box and a UV protected LCD display that can be exposed to the sun. The complete system consists of an electric contacting water meter remotely connected by means of a low voltage two-conductor wire sent from the water meter to the Universal Remote. The A31UR display will show the measuring value; gallons, cubic feet or liters/cubic meters and the units per pulse.

SPECIFICATIONS

Display: UV Protected LCD, 8 Digit, .315" high

Housing: NEMA-4 (UV protected stabilized ABS plastic)

Frequency Input: Maximum Frequency 10Hz, Minimum Frequency 0 Hz, Minimum Pulse Width 10ms

Operating Humidity: 100%

Maximum Distance: 500' (depending on wire and electrical noise ~ 18-20 gauge trewiste pair wire)

Operating Temperature: -40F to 180F

Dimensions: 4 3/4"H x 3" Width x 1" Depth

Weight: 5 oz

Measuring Value: Gallons, Cubic Feet or Liters/Cubic Meters; plus the signal frequency from the meter 1:1, 10:1, 100:1, 1,000:1

Input: Reed Switch or Capacitor Discharge Generated Pulses

INSTALLATION INSTRUCTIONS:
1. Locate the counter in a convenient location. If outdoors, note temperature range.
2. Wire counter to the electric contact meter using two conductor wire.
3. It is recommended that the counter be kept away from solenoids, contactors, fans, and other inductive devices.
4. The counter advances 1 digit for each contact received from the meter. To read the counter, multiply the reading by the gallon per contact setting on the meter. (Example: A meter set to 10 GPC (gallons per contact) will send a contact to the remote every 10 gallons so the reading on the remote must be multiplied by 10. See right side of display for contact ratio.
5. If the contact meter being used to control this counter is also sending a signal to another device, a signal splitter is required. An electric contacting meter can generate only one dry contact unless a PP101 power pack (signal splitter) is used. Contact Carlon Meter for assistance.
Visit us online at www.carlonmeter.com for additional information
09/17
Display: UV Protected Liquid Crystal, 8 Digit, .315” high
Housing: NEMA-4 (UV protected stabilized ABS plastic)
Power Input: 3.6v Lithium Battery (Non-serviceable)
Frequency Input: Maximum frequency: 10 Hz
Minimum frequency: 0 Hz
Minimum pulse width: 10ms
Operating humidity: 100%
Maximum distance: 500’ (depending on wire and electrical noise ~
18-20 gauge twisted pair wire)
Operating Temperature: - 40°F to 180°F
Dimensions: Height 4¾”, Width 3”, Depth 1”
Weight: 5 oz.
Measuring Value: Gallons, Cubic Feet or Liters/Cubic Meters; plus the signal
frequency from the meter 1:1, 10:1, 100:1, 1,000:1
Input: Reed Switch or Capacitor Discharge Generated Pulses
