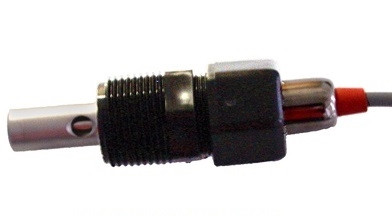

Myron L CS52 Conductivity Sensor 100 psi @ 95°C (for ranges above 20,000 µS/ppm)

Wetted materials of construction are 316 stainless steel and Teflon®*, with double O-ring seals at all points. The first EPR O-ring bears the brunt of process interface, allowing the second O-ring to maintain reliable sealing, free from chemical attack. An integral temperature element allows automatic compensation for maximum accuracy. Leads are 10 ft./3 meters standard.

Process connections are made via a bored through swage 3/4” NPT fitting as standard. This fitting may be installed into a line or tank, or may be reversed and connected to a standpipe for use in a submersion configuration. The CS10 was designed primarily for use in pure water applications.

Benefits:

• Economic Value
• Small, Convenient Size
• 100 psi at 95°C
• General Purpose Use
• Field Replaceable

Technical Specifications

• Maximum Pressure/Temperature Ratings: 100 psi (6.9 bar) at 95°C (203°F)

• Wetted Materials:

  • Insulator: CPVC (Optional: Teflon® or Kynar®†)

  • O-rings: EPR

  • Electrodes: 316 Stainless Steel (other materials available upon request)

• Temperature Compensation: 10 KΩ @ 25°C (77°F); RT100 & RT1000 available upon request

• Connections:

  • Process: 3/4” NPT (compatible with BSP)

  • Electrical: Plain tinned wire ends, 22–24 gauge

• Sensor Constant:

  • Model: CS52

  • Range: 0–50,000 to 0–200,000 µS/ppm

  • Cell Constant: 10.0
