Lovibond

Lovibond MD 100 Colorimeter: COD Tube Test Kit

No reviews yet
SKU: 276120
Weight: 3.00 LBS
Shipping: Calculated at Checkout
$549.00
icon Share icon Share
  • product-security-image-1.jpg
  • product-security-image-2.jpg
  • product-security-image-3.jpg
  • product-security-image-4.jpg

Lovibond MD 100 COD Tube Test Kit. Please note this instrument is supplied without reagents.

Contents:

  • Instrument in plastic case
  • Adapter for ø 16 mm cuvettes
  • 4 micro batteries (AAA)
  • Syringe (1 ml)
  • Syringe (2 ml)
  • Instruction manual
  • Quick Start Guide
  • Certificate (COC)

Highlights:

  • Lightweight, rugged design for use in the field
  • Single unit construction with no parts to lose or break
  • Large, easy to read display
  • Industry specific parameter combinations available

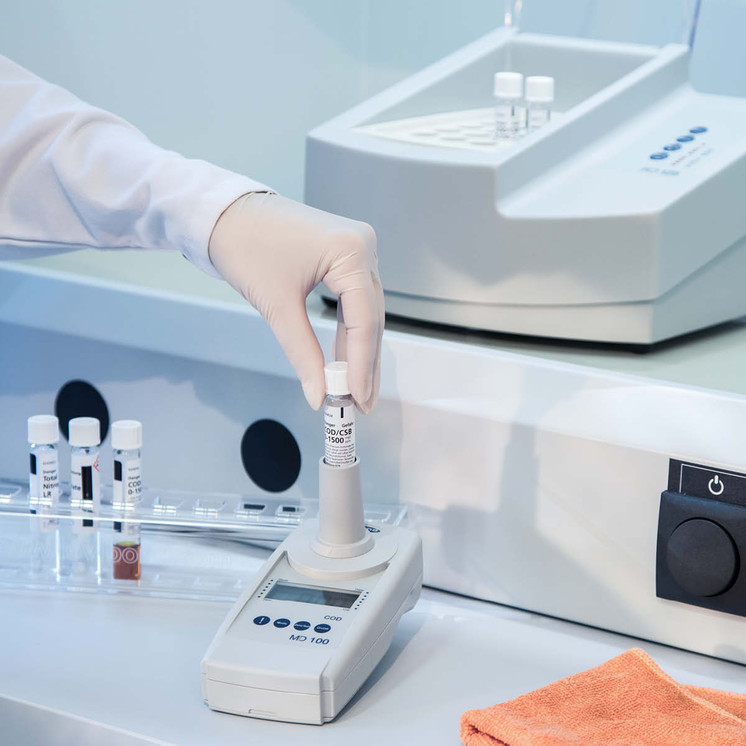

The MD 100 COD is a dedicated, single parameter, instrument for COD Analysis. No need to purchase a multi-parameter colorimeter or spectrophotometer to get access to this critical waste water testing parameter!

The instrument utilizes Lovibond VARIO COD tube test reagents, which are available in three testing ranges. The reagents meet US EPA requirements for reporting purposes. Mercury-Free versions are also available for non-reporting purposes.

Description:

The MD 100 has several key features that make it a favorite among users.

  • Waterproof Design
    The IP 68 design of this instrument ensures that the MD 100 remains water tight for up to 1 hour at 0.1 meter.
    Don't worry about dropping the instrument into a body of water - it floats!
  • Accurate, Reproducible Results
    The optical system of the MD 100 utilizes LEDs and interference filters
    which quickly gives you results that you can be confident in.
  • User Calibration Mode
    A one-point calibration is possible.
    Additionally, all MD 100 instruments have the ability to display readings directly in ABS or %T units.
  • One-time-Zero Function
    Don't waste time waiting for your instrument to Zero after each test.
    When testing a new sample, zero the instrument once and all subsequent tests of that sample do not require you to re-zero the instrument.
  • Automatic Data Storage with Transfer Capabilities
    The MD 100 automatically stores the last 16 readings with time and date stamp.
    These results can be transferred to a spreadsheet using the IRiM accessory.
  • Ergonomic Design
    Whether you're using the MD 100 out in the field or in the lab, the design of the instrument  makes it easy to handle and view the display.
    If you're using the instrument in the lab, the rubber feet on the bottom of the housing eliminates the need for two hand operation or to chase your instrument around the workbench.
  • Factory Programmed
    All MD 100 instruments are supplied ready to use with up to 14 calibration curves.
    All you need to do is select the test you need, prepare your sample and test!
  • Scroll Driven Menu System
    The simple interface allows you to quickly reach the test you need.
    When the instrument is turned on, it will automatically display the last test used.
  • 2-Year Warranty
Technical Data:
Optics LEDs, interference filters (IF) and photo sensor in transparent sample chamber. Depending on the version, up to 3 different interference filters are used. Wavelength specifications of interference filters:
430 nm Δλ = 5 nm
530 nm Δλ = 5 nm
560 nm Δλ = 5 nm
580 nm Δλ = 5 nm
610 nm Δλ = 6 nm
660 nm Δλ = 5 nm
Wavelength Accuracy ± 1
Photometric Range -2600 - 2600 mAbs
Photometric Accuracy 3 % FS (T = 20 °C – 25 °C)
Operation Foil keypad
Display backlit LCD (on keypress)
Suitable Vials Round Cuvettes 16 mm
Calibration factory calibration and user calibration. Reset to factory calibration possible
Interfaces Infrared
Internal Storage internal ring memory for 16 data sets
Power Supply 4 micro batteries (AAA)
Battery Life Time approx. 17 hours
Auto – OFF Yes
Clock Real Time Clock and Date
Portability Portable
Environmental Conditions Temperature:  5 - 40 °C rel. humidity: 30 - 90 % (non condensing)
Compliance CE
Protection Class IP 68

Range:

TestparameterMeasuring RangeMethod No.Chemical Method
COD HR TT 200 - 15000 mg/l COD M132 Dichromate / H2SO4
COD LMR TT 15 - 300 mg/l COD M133 Dichromate / H2SO4
COD LR TT 3 - 150 mg/l COD M130 Dichromate / H2SO4
COD MR TT 20 - 1500 mg/l COD M131 Dichromate / H2SO4

Suitable Reagents:

TitleMeasuring RangeChemical MethodPackaging UnitPart Number
COD LR/25 3 - 150 mg/l CODb) Dichromate / H2SO4 25 pc. 2420720
COD LR/25, mercury free 3 - 150 mg/l CODb) Dichromate / H2SO4 25 pc. 2420710
COD LR/150 3 - 150 mg/l CODb) Dichromate / H2SO4 150 pc. 2420725
COD MR/25 20 - 1500 mg/l CODb) Dichromate / H2SO4 25 pc. 2420721
COD MR/25, mercury free 20 - 1500 mg/l CODb) Dichromate / H2SO4 25 pc. 2420711
COD MR/150 20 - 1500 mg/l CODb) Dichromate / H2SO4 150 pc. 2420726
COD MR/150, mercury free 20 - 1500 mg/l CODb) Dichromate / H2SO4 150 pc. 2420716
COD HR/25 200 - 15000 mg/l CODb) Dichromate / H2SO4 25 pc. 2420722
COD HR/25, mercury free 200 - 15000 mg/l CODb) Dichromate / H2SO4 25 pc. 2420712
COD HR/150 200 - 15000 mg/l CODb) Dichromate / H2SO4 150 pc. 2420727
COD LMR 15 - 300 mg/l CODb) Dichromate / H2SO4 25 pc. 2423120
