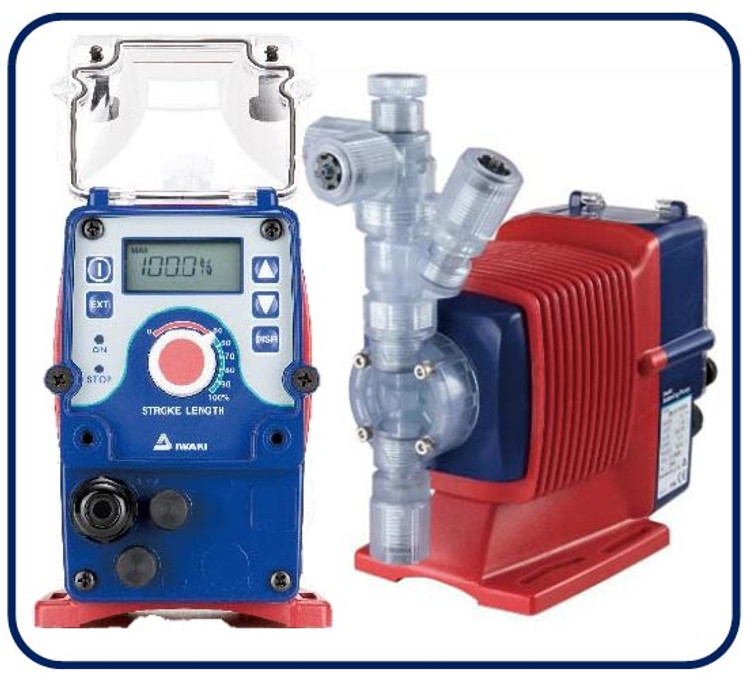

Model: EWN-B11VCURA With Automatic De-gassing Valve
Output: Adjustable to 0.5 GPH
Control: Manual, 4-20ma or 0-20ma reversible, Pulse Mult/Divide, Start/Stop, Pre-Stop Input, Prime feature
PSI: 150 PSI Pressure
Voltage: 115VAC, 1.2 Amp max.
Suction Connection: 3/8"
Discharge Connection: 3/8" Tubing
Process Connection: 1/4" or 1/2" NPT Step Up Threaded Injector with Quill
Materials: PVC Head and Fittings, Ceramic Balls, FKM Valve Seats and Seals
Certifications: WQA Tested and NSF/ANSI standard 50 and 61 certified. Meets UL and CSA standards for electrical safety.
- P/N E90495: 5-Pin Round, Standard Key (Sold Separately)
- Pin #1: AUX Input (+)
- Pin #2: DIG Pulse Input (+)
- Pin #3: Analog Input (+)
- Pin #4: OUT 1 (SPM or STOP Output)
- Pin #5: Common (-)
- P/N E90496: 5-Pin Round, Reverse Key (Sold Separately)
- Pin #1: Start/Stop Input
- Pin #2: Pre-Stop Input
- Pin #3: Not Used
- Pin #4: Common
- Pin #5: Not Used
*Note: Connectors are NOT supplied with pump.
General EWN Series Pump Information:
The EWN-R Series electronic metering pumps offer superior high speed dosing capability with more standard features. The flexibility of the EWN-R pump enable it be integrated into virtually any chemical feed application using a universal voltage, digital controller with an expanded set of control features. Superb valve performance and advanced solenoid engineering combine to make a highly precise pump for the most demanding applications. EWN pumps have outputs to 6.7 GPH (25.2 L/h) and a maximum pressure of 290 PSI (20 bar). The high speed of operation results in high resolution chemical feed and long service life. Quiet and compact, the EWN pumps prime in seconds and hold prime reliably.
High Speed Performance
E-Series pumps operate up to 360 strokes-per-minute with adjustments in 1 spm increments, providing high resolution chemical feed. Adjustable stroke length further increases the ability to refine the output, making the E-Series one of the most versatile solenoid metering pumps on the market.
Multi-function Digital Controller
The controller in the EWN-R pump provides for flexible pump control including scalable Analog control, Digital Input with both Multiply and Divide capability, external stop control, or simple speed and stroke length control. Display can be adjusted between flow rate units or % speed for easy-to-read output and quick adjustment. The controller is universal voltage so it can be used anywhere in the world.
All E-Series pumps feature dual bearing support. The armature and shaft are supported with a bearing on each end, which ensures proper axial movement, enabling the E-Series to operate at 360 SPM while extending the life of the diaphragm.
Superior Check Valve Performance
Dual Check Valve Assemblies in both suction and discharge fittings feature precision ball guides and tapered seats. Precise machining and molding of parts limit valve ball travel, ensuring that balls fully seat and seal with every stroke. This superior check valve design guarantees fast priming and reliable performance.
A removable tubing insert provides flexibility of tubing sizes and eliminates twisting of the tubing during connection. A threaded insert can be used in place of the tubing adapter to easily convert any connection to NPT.
High Compression Ratio
The compression ratio of a metering pump is important because it affects the pump’s ability to prime and vent. The compression ratio is raised when you reduce the dead volume of the pump head during operation. All E-Series pumps feature a very high compression ratio that ensures proper feed especially with off-gassing products (i.e. Sodium Hypochlorite).
