Walchem

Walchem EZB21D1-VC Series Electronic Chemical Metering Pump, 1.5 GPH, 60 psi

No reviews yet Write a Review
SKU: EZB21D1-VC
Weight: 10.00 LBS
Shipping: Free Shipping
$509.00
icon Share icon Share
  • product-security-image-1.jpg
  • product-security-image-2.jpg
  • product-security-image-3.jpg
  • product-security-image-4.jpg



SPECIFICATIONS

Model: EZB21D1-VC

  • 0 to 1.5 GPH
  • 60 PSI
  • 115 VAC
  • 3/8" Tubing Connections

(All options available please call for different Voltage or Liquid End)

OVERVIEW

Walchem EZB21D1-VC Series electronic metering pumps offer precise chemical injection at a low cost. The compact size and simple control make them ideal for water treatment and OEM applications.

Walchem Chemical Metering Pump EZB21D1-VC Series have outputs to 6.3 GPH (24 l/h) and a maximum pressure of 150 PSI ( 10 bar). Advanced microprocessor control and a turndown ratio of 360:1 make this series an exceptional value. The pumps are simple to operate with only three pushbutton keys and the unmatched turndown ratio provides both versatility and high resolution chemical feed which eliminates slug-feeding effects.

SUMMARY OF KEY BENEFITS

High Speed Performance E-Class pumps operate at 360 strokes-per-minute, providing high resolution chemical feed. Most competitive products operate at slower speeds, resulting in slug feeding, accelerated diaphragm wear and poor feed control.

Engineered Longevity All E-Class pumps feature dual bearing support. The armature and shaft are supported with a bear- ing on each end, which ensures proper axial movement, enabling the E-Class to operate at 360 SPM while extending the life of the diaphragm.

Superior Check Valve Performance Dual Check Valve Assemblies in both suction and discharge fittings feature precision ball guides and tapered seats. Precise machining and molding of parts limit valve ball travel, ensuring that balls fully seat and seal with every stroke. This superior check valve design guarantees fast priming and reliable performance.

High Compression Ratio The compression ratio of a metering pump is important because it affects the pump?s ability to prime and vent. The compression ratio is raised when you reduce the dead volume of the pump head during operation. All E-Class pumps feature a very high compression ratio that ensures proper feed especially with off-gassing products (i.e. Sodium Hypochlorite).

Optional Innovative Timer Control The EZ-Timer module integrates Walchem's EZB pump technology with a versatile programmable timer. Timed feed control can be programmed in daily or weekly cycles.

Call for quote for this version with built-in timer control

Walchem and Iwaki have over 100 years of combined pump experience. This partnership has led to the design of the most innovative and comprehensive metering pump product line in the world, the E-Class Metering Pumps. E-Class features five great series: EZ, EW, EK, EHE and EHF. The wide range of capabilities within the E-Class ensures that there?s a model to fit any water treatment, food & beverage, agriculture, water condition- ing, car wash, or other industrial chemical feed applications.

Walchem EZB pumps have outputs to 6.3 GPH (24 l/h) and pressure capabilites to 150 PSI (10 bar). The compact size and simple control make it ideal for OEM applications. Effective, reliable performance is achieved through sophisticated engineering. Designed with a turndown ratio of 360:1, the EZ is an exceptional value.

Simply stated - the EZ packs all of the 360spm performance of the bigger pumps into the compact chasis of the industry's easiest pump to operate. The EZ is the best on/off pump on the market. Built to prime, hold prime and to last, the EZ Series metering pump offers precise chemical injection at an economical cost.

Features include double ball check valves, long lasting diaphragm, an optional automatic air vent valve and the ability to remotely mount the control unit.

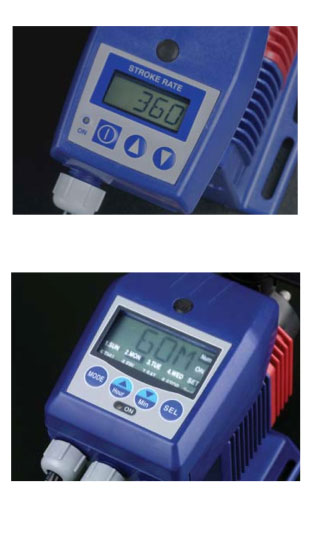

Digital Speed Control

The EZ is simple to operate with three pushbutton keys. The 360:1 turndown ratio provides unmatched verstaility.

Timer Control Module Option

The Walchem EZ-Timer module integrates Walchem's EZB technology with a versatile programmable timer. Timed feed control can be programmed in daily or weekly cycles. The weekly schedules can be programmed in either 1 or 2-week cycles with a daily on-time. The daily timer can be set for multiple daily on-times. On-times are set in minutes (0-999).

The Walchem EZ-Timer pump is a simple and effective way to automate additions in small systems. With capacities up to 3.2 GPH and pressure ratings up to 150 psi, the EZ-Timer pump is perfect for many applications, including accurate, consistent addition of biocides into your cooling tower system.


x
EZB21D1-VC (1.5 GPH, 60 psi, 3/8 inch tubing)
